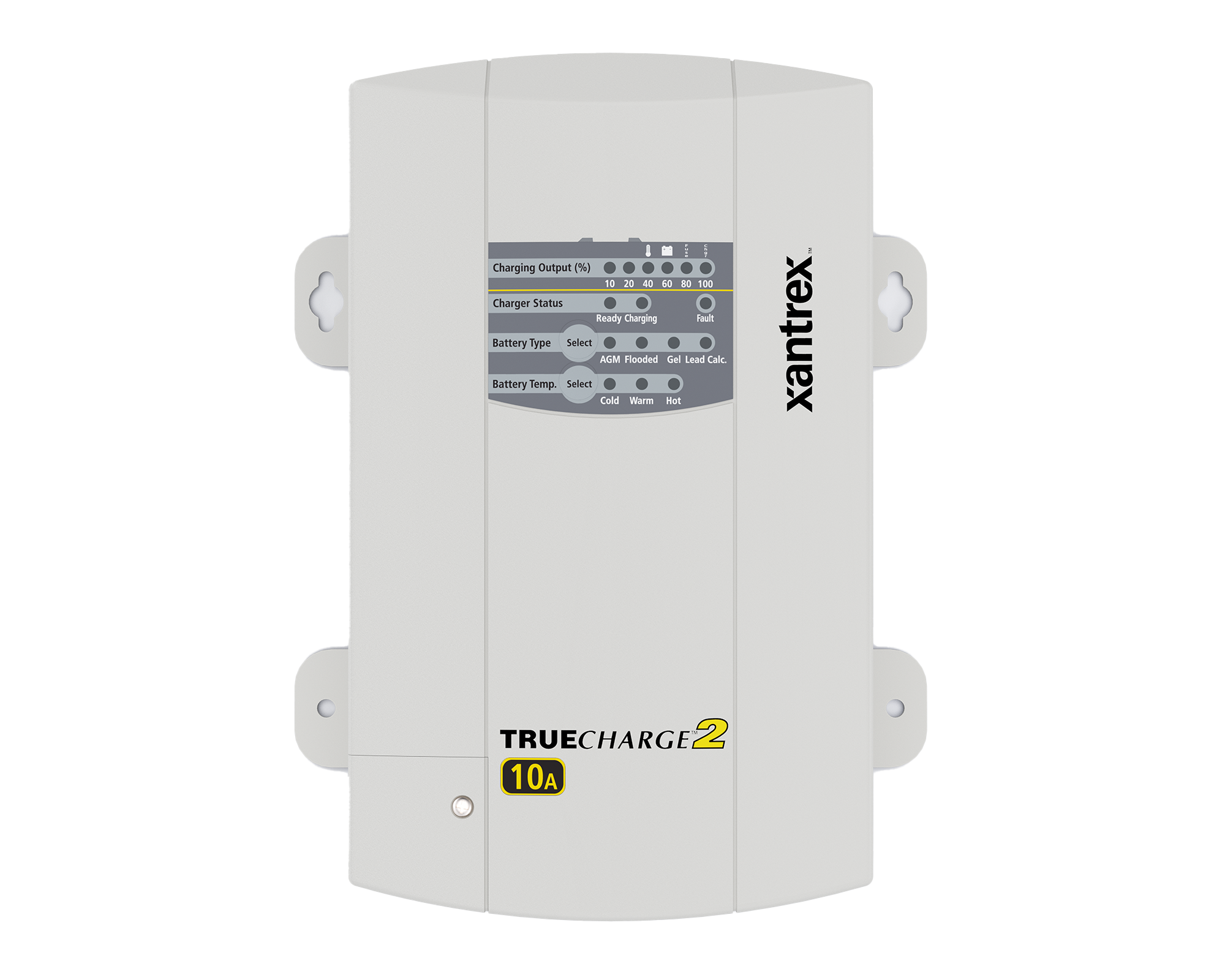

TRUEcharge2 10A/12V

 Ultra-compact, high performance Charger for worldwide charging

TRUEcharge2 Battery Chargers lead the industry with a small footprint and ultra-compact design. Designed for marine and commercial applications worldwide, the TRUEcharge2 10-amp replaces the former best-selling, first-generation TRUEcharge 10TB unit and features universal auto ranging input voltage (90 Vac–265 Vac, 47–63 Hz), which can be used in most parts of the world. The TRUEcharge2 10-amp is smaller and lighter than its predecessor and can be mounted in a variety of positions.

The TRUEcharge2 10-amp charger uses power factor correction to deliver a full three-stage charge cycle. As a result, the charger requires less incoming AC power to operate at its peak efficiency, freeing up more usable AC power for onboard electronics.

Certifications:

  • H.A.L.T
  • CSA E60335-2-29, UL1564, and UL1236 including the Marine Supplement and drip test
  • CE Marked for the Low Voltage Directive (safety) and the EMC Directive
  • Complies with IEC 60335-2-29 including Australian deviations
  • Ingress protection rating IP32 per EN/IEC 60529
  • Complies with FCC Part 15B and Industry Canada ICES-003 Class B emissions limits. Complies with ABYC A-31

Applications:

  • Recreational Vehicles
  • Heavy Duty Trucks
  • Coaches/Buses
  • Marine
  • Work Trucks
  • Specialty Vehicles

Available in:

  • TRUECHARGE2 10
    10A, 12V
    PN: 804-1210

Charges flooded, gel, AGM or lead-calcium batteries

Power Factor Corrected (PFC) Charging

Less shorepower is required for charging batteries, freeing up more usable AC power for running electrical devices and appliances and reducing the likelihood of tripping shorepower breakers

Features

  • Automatic 3-stage Battery Charger

  • Included battery temperature sensor

  • DC to AC power inverting

  • Circuit breaker protection

Dimensions

TRUEcharge2 10A/12V

Electrical Specifications

@ 25°C unless otherwise noted
TRUEcharge2 10A/12V
Output current (nominal)
10 A
Output voltage (nominal, depending on settings)
Charge
14.2 – 15.5 Vdc
Float
13.4 – 13.8 Vdc
Equalize
NA
DC output connections
Two
AC input voltage
90-265 Vac; 47-63 Hz 120 Vac, 230 Vac, 240 Vac nominal
Temperature compensation
Three settings
Charger efficiency
> 80%
Battery type
Gel, Flooded, AGM, Pb-Ca
Minimum recommended battery bank size
20 Ah

General Specifications

TRUEcharge2 10A/12V
Operating temperature (output may derate above 50°C)
0 to 65°C (32°F – 149°F)
Storage temperature
40 to 80°C (-40°F – 176°F)
Battery connection
Two positive terminals, One negative terminal
Dimensions (H x W x L)
2.7″ x 5.4″ x 8.8” (70mm x 138mm x 224mm)
Weight
3.3 lb (1.5 kg)
Warranty
Two year
Part Number
804-1210

Regulatory

TRUEcharge2 10A/12V
CSA, UL
CSA E60335-2-29, UL1564, and UL1236 including the Marine Supplement and drip test.
CE, EMC
CE Marked for the Low Voltage Directive (safety) and the EMC Directive.
IEC
Complies with IEC 60335-2-29 including Australian deviations.
IP Rating
Ingress protection rating IP32 per EN/IEC 60529.
FCC, ICES-003
Complies with FCC Part 15B and Industry Canada ICES-003 Class B emissions limits.
ABYC
Complies with ABYC A-31.
