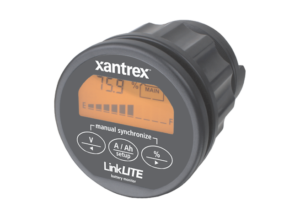

LinkPRO Battery Monitor

Battery status at a glance

Defining the amount of energy available in a battery is a complex task since battery age, discharge current and temperature all influence the actual battery capacity. High performance measuring circuits, along with complex software algorithms, are used to exactly determine the remaining battery capacity. A new shunt selection feature enables the LinkPRO and LinkLITE to measure currents up to 10,000 and 1,000 amps respectively. The LinkPRO and LinkLITE selectively displays voltage, charge and discharge current, consumed amphours, remaining battery capacity and the LinkPRO also displays the time remaining of your battery bank. Using a clear backlit LCD Display and an intuitive user interface, all parameters can be recalled with just a button press. A second battery input is also provided to monitor voltage on a second battery bank. The LinkPRO and LinkLITE are equipped with an internal programmable alarm relay, to run a generator when needed or to turn off devices when the battery voltage exceeds programmable boundaries.

Certifications:

  • EMC Directive 2004/108/EC (EN61000-6-2 and -6-3).
  • Automotive EMC Directive 95/54/EC. RoHS Directive 2002/95/EC

Applications:

  • Marine
  • Recreational Vehicle
  • Heavy Duty Truck
  • Buses
  • Work Truck
  • Emergency/Service

Features

  • Read your battery bank like a fuel gauge

  • Displays voltage, current, consumed amp hours and remaining battery capacity

  • Large backlit LCD display

  • Splash proof front panel

LinkLITE and LinkPRO

Electrical Specifications
LinkPRO
LinkLITE
Supply voltage range
9 to 35 Vdc
9 to 35 Vdc
Supply current*
@ Vin = 12 Vdc
9 mA
9 mA
@ Vin = 24 Vdc
7 mA
7 mA
Input voltage range
Main battery
0 to 35 Vdc
0 to 35 Vdc
Auxiliary battery
2 to 35 Vdc
2 to 35 Vdc
Input current range**
-9999 to +9999 A
-999 to +999 A
Battery capacity rang
20 to 9990 A
20 to 999 A
Readout resolution
Voltage (0 to 35 V)
± 0.01 V
± 0.01 V
Current
0 to 199 A (± 0.1 A)
0 to 99 A (± 0.1 A)
Current
200 to 9999 A (± 1 A)
100 to 999 A (± 1 A)
Amphours
0 to 199 Ah (± 0.1 Ah)
0 to 99 Ah (± 0.1 Ah)
Amphours
200 to 9999 Ah (± 1 Ah)
100 to 999 Ah (± 1 Ah)
State-of-charge
± 0.1%
± 1%
Time-to-go (0 to 99 hrs)
± 1 minute
n/a
Time-to-go (100 to 240 hrs)
± 1 hour
n/a
Temperature (-20 – +50˚C)**
± 0.5˚C
n/a
Voltage measurement accuracy
± 0.3%
± 0.3%
Current measurement accuracy
± 0.4%
± 0.4%
General Specifications
LinkPRO
LinkLITE
Operating temperature***
-20 to 50°C
-20 to 50°C
Battery monitor dimensions
Front panel
ø 2.54” (64 mm)
ø 2.54” (64 mm)
Body diameter
ø 2.05” (52 mm)
ø 2.05” (52 mm)
Total depth
ø 3.11” (79 mm)
ø 3.11” (79 mm)
Shunt dimensions
Footprint
1.77 x 3.43” (45 x 87 mm)
1.77 x 3.43” (45 x 87 mm)
Height
0.67” (17 mm) base / 1.38” (35 mm) terminal bolts
s 0.67” (17 mm) base / 1.38” (35 mm) terminal bolts)
Weight
Battery monitor weight
0.21 lb (95 g)
0.21 lb (95 g)
Shunt weight
0.32 lb (145 g)
0.32 lb (145 g)
Warranty
One year
One year
Part Numbers
84-2031-00
84-2030-00
Accessories
Temperature sensor -32 ft (10 m)
854-2022-01
Communication kit
854-2019-01
Connection kit -50 ft (15 m)
854-2021-01
854-2021-01
General Specifications
LinkPRO
LinkLITE
Operating temperature***
-20 to 50°C
-20 to 50°C
Battery monitor dimensions
Front panel
ø 2.54” (64 mm)
ø 2.54” (64 mm)
Body diameter
ø 2.05” (52 mm)
ø 2.05” (52 mm)
Total depth
ø 3.11” (79 mm)
ø 3.11” (79 mm)
Shunt dimensions
Footprint
1.77 x 3.43” (45 x 87 mm)
1.77 x 3.43” (45 x 87 mm)
Height
0.67” (17 mm) base / 1.38” (35 mm) terminal bolts
s 0.67” (17 mm) base / 1.38” (35 mm) terminal bolts)
Weight
Battery monitor weight
0.21 lb (95 g)
0.21 lb (95 g)
Shunt weight
0.32 lb (145 g)
0.32 lb (145 g)
Warranty
One year
One year
Part Numbers
84-2031-00
84-2030-00
Accessories
Temperature sensor -32 ft (10 m)
854-2022-01
Communication kit
854-2019-01
Connection kit -50 ft (15 m)
854-2021-01
854-2021-01
