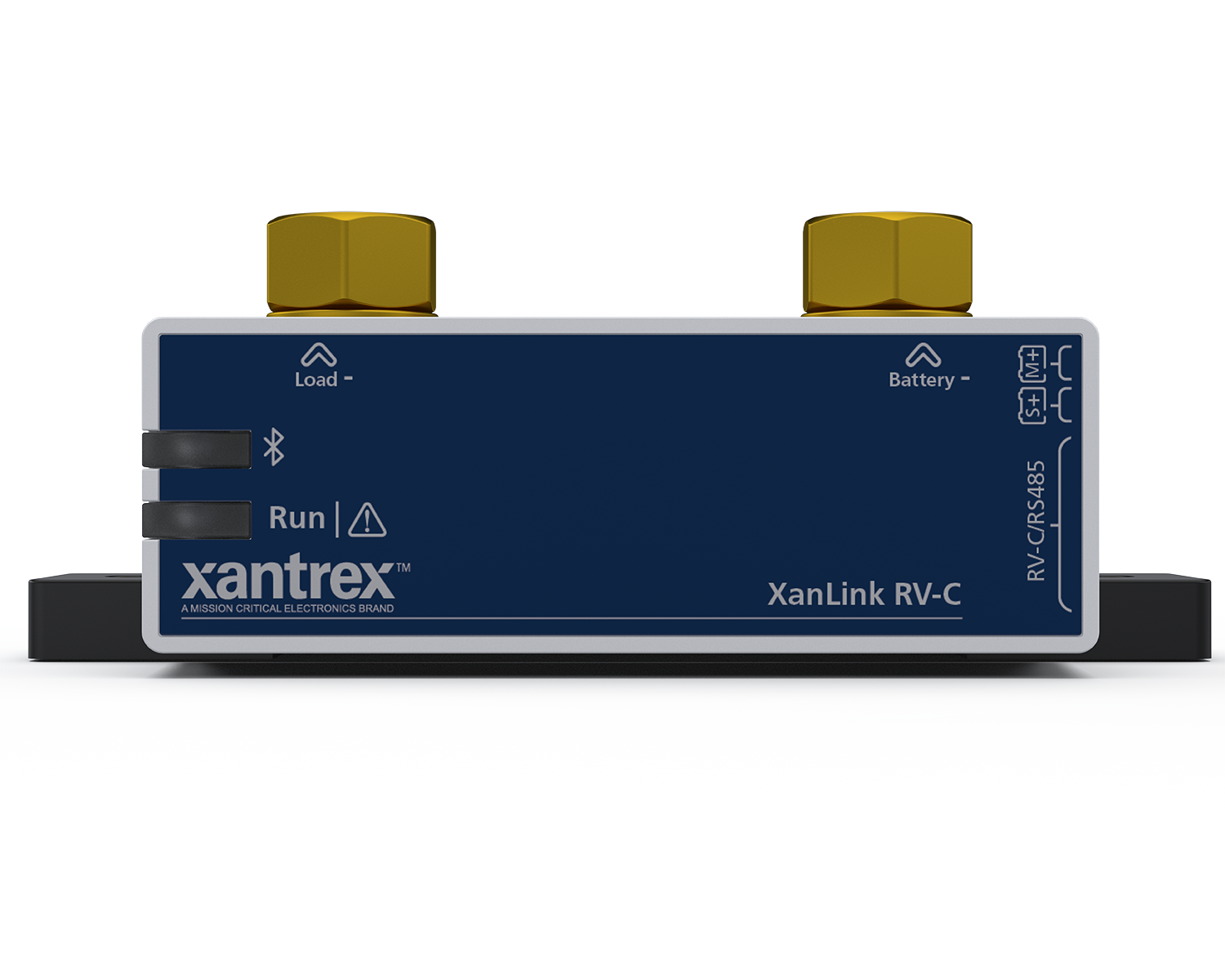

Xanlink Battery Monitor

Enjoy a More Efficient and Connected Experience

 Determining your battery’s remaining capacity can be challenging due to factors like age, discharge current, and temperature. The XanLink battery monitor simplifies this process, providing accurate and reliable readings of your battery’s remaining power. Capable of measuring currents up to 500A, the XanLink ensures precise monitoring, giving you full control over your battery’s state of charge.

Monitor your battery’s performance directly from your phone with the Xantrex app. Receive real-time updates on your battery’s state of charge and more. The intuitive interface ensures you have all the information you need to manage power usage and plan your next trip with confidence.

Applications:

  • Recreational Vehicles
  • Heavy Duty Trucks
  • Work Trucks
  • Specialty/Emergency Vehicles

Compatible with:

  • All Battery Types
  • Xantrex Lithium-Ion Batteries 12V
    883-0105-12, 883-0125-12, 883-0240-12, 884-0310-12, 884-0410-12
  • Xantrex Lithium-Ion Batteries 24V
    886-0050-24, 884-0205-24

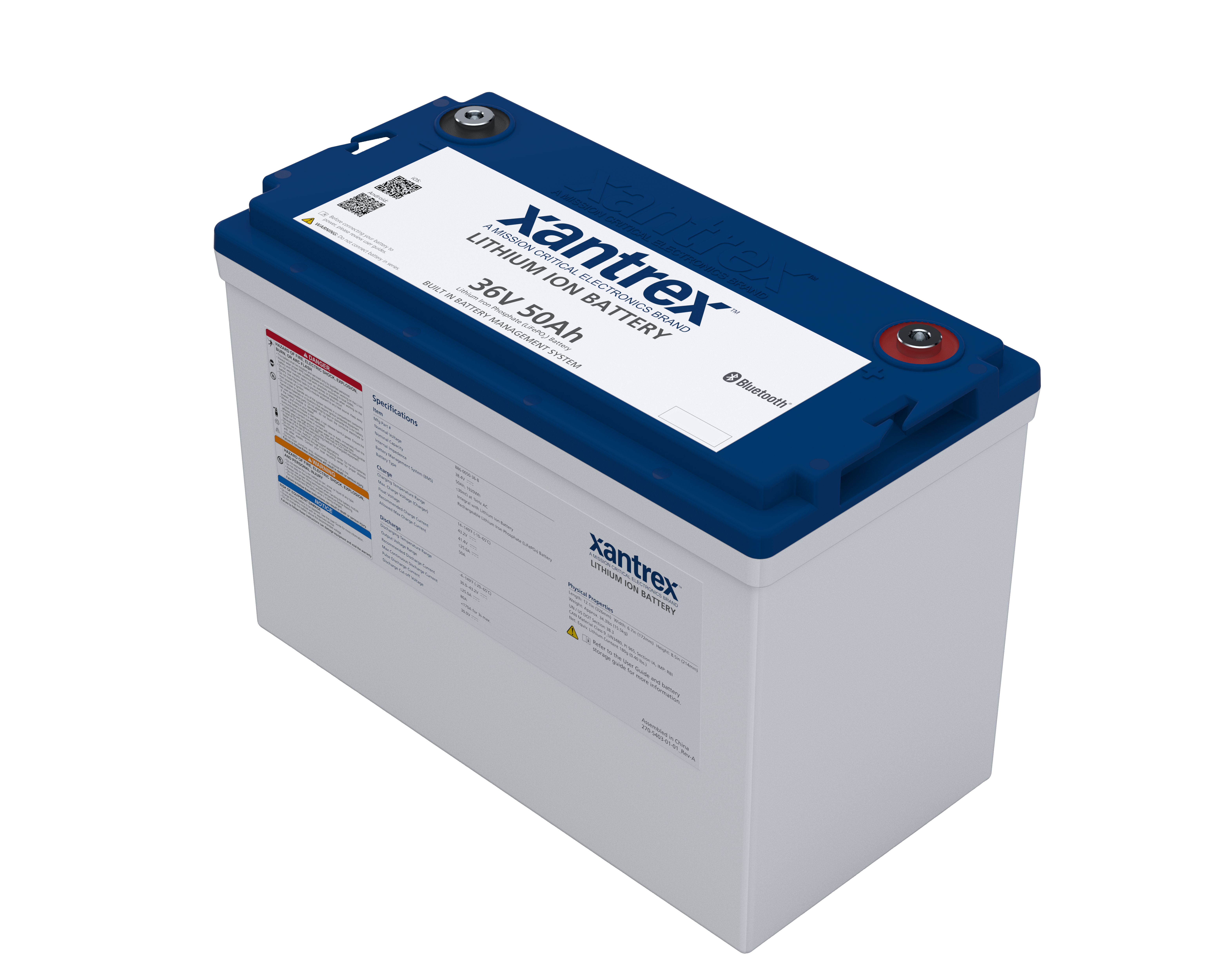

  • Xantrex Lithium-Ion Batteries 36V
    886-0050-36

Available in

  • XanLink
    854-2032
  • XanLink RV-C
    854-2033

Going the extra mile

Access 60 days of historical data via the Xantrex mobile app along with monitoring battery performance over time, including charging/discharging duration and min/max voltage.

Remote Monitoring and Control

Charge and discharge currents up to 500A. Now monitor charging status, discharge count, and deep discharge events.

Off-Grid Monitoring at Your Fingertips

Built-in Bluetooth for easy wireless monitoring and control. Supports RV-C communication integration with RV systems.

Features

  • Secondary battery bank voltage monitoring

  • Design for fast and easy installation

  • Monitors battery performance over time

  • Built-in Bluetooth & supports RV-C

Electrical Specifications

XanLink
XanLink RV-C
Part Number
854-2032
854-2033
Supply Voltage Range
6.5~60Vdc
6.5~60Vdc
Input Voltage Range
Main Battery
6.5~60Vdc
6.5~60Vdc
Auxiliary Battery
6.5-60Vdc
6.5-60Vdc
Shunt
500A/50mV
500A/50mV
Battery Capacity Range
1-9999Ah
1-9999Ah
Readout Resolution
Voltage (0–60V)
±0.01V
±0.01V
Current
±0.01A
±0.01A
Amphours
±0.1Ah
±0.1Ah
State-of-charge
±1%
±1%
Time-to-go (0–99hrs)
±1min
±1min
Voltage Measurement Accuracy
±0.3%
±0.3%
Current Measurement Accuracy
±0.4%
±0.4%

Mechanical Specifications

XanLink
XanLink RV-C
Operating Temperature
-35°C to 65 °C
-35°C to 65 °C
Dimensions
Length
120mm
120mm
Width
52.4mm
52.4mm
Height
45.9mm
45.9mm
Weight
0.35kg
0.35kg
IP Protection Rating
IP21
IP21

Regulatory Approvals

XanLink
XanLink RV-C
UL/CSA 62368-1 (3rd Edition) for North America EN 62368-1 (2nd Edition) for the EU Low Voltage Directive 2014/35/EU
UL/CSA 62368-1 (3rd Edition) for North America EN 62368-1 (2nd Edition) for the EU Low Voltage Directive 2014/35/EU
FCC PART 15 Subpart C (47 CFR) ISED Canada RSS-Gen Issue 5 / RSS-247 Issue 3 EMC Directive 2014/30/EU
FCC PART 15 Subpart C (47 CFR) ISED Canada RSS-Gen Issue 5 / RSS-247 Issue 3 EMC Directive 2014/30/EU
CE
CE
Bluetooth SIG
Bluetooth SIG
