FREEDOM 458

Inverter/Charger

FREEDOM 458

With filtered modified sine wave output, the Freedom 458 inverter/charger has the ability to run electrical equipment, appliances and even many sensitive electronics. Perfect for any RV, the temperature controlled multistage charging ensures that your batteries are recharged quickly, and safety features such as automatic shut down protects your expensive deep-cycle batteries from excessive depletion.

*Note: only 81-2022-12 comes with circuit breakers

Learn More

Trusted Solution in RV Inverter/Chargers, Economical and Dependable

Installed in RVs for almost two decades, this inverter/charger has proven itself, with filtered modified sine wave output, the Freedom 458 inverter/charger runs most loads, from office equipment to household appliances and electronics.

Temperature controlled multi-stage charging ensures that your batteries are recharged quickly when electricity supplied by your RV’s generator or campground hookup. Automatic low/high DC voltage shutdown and other safety features help to protect your expensive deep-cycle batteries from excessive depletion. Twin AC output breaker variant also available.

Certifications:

UL and cUL listed to UL 458 and CSA C22.2 No. 107.1 / 107.2 standards

Applications:

Recreation Vehicles
Heavy Duty Trucks
Coaches/Buses
Work Trucks
Speciality/Emergency Vehicles

Available in:

Freedom 458

2000W/100A

PN: 81-2010-12, 81-2022-12
Freedom 458

2500W/130A

PN: 81-2530-12

Features

Automatic 3-stage battery charger
Built-in 30A transfer switch transfers between inverter and incoming AC power
Programmable front panel and LED indicators
Dual input and output for easy installation

What Can Be Powered

FREEDOM 458 20

Blender
Coffee Machine
Microwave
Smartphone
Laptop

FREEDOM 458 25

Blender
Coffee Maker
Fridge
Microwave
Smartphone
Laptop

Dimensions

FREEDOM 458 20 & 25

Electrical Specifications – Inverter

Output power (continuous)

2000 W

2500 W

Surge power (AC amps)

50 A

62.5 A

Output frequency regulation

60 Hz

Inverter voltage regulation

120 V +/- 5% true RMS

Output wave form

Modified sine wave

Efficiency (full load)

85%

87%

Peak efficiency

92%

No load current draw (idle mode)

0.12 A

AC output connections

Single

Dual

AC input connections

Single

Dual

AC transfer switch

30 A

Electrical Specifications – Battery Charger

Charge rate

100 A DC

130 A DC

AC input voltage range

90 130 Vac

Battery voltage (nominal)

12 Vdc

Battery voltage range

10.0 15.5 Vdc

Low battery cut-out

10.0 Vdc

AC input (max. charge mode)

21 A AC

26 A AC

Bulk charge voltage

14.3 Vdc

Float charge voltage

13.4 Vdc

Equalize charge voltage

16.3 Vdc

Charge control

3-stage

Battery type settings

Wet / Gel 1 / Gel 2 / AGM

Equalization

Yes

Temperature sensitive charging

Yes

General Specifications

Optimal operating temperature range

32°F – 104°F (0°C – 40°C)*** derated below 0°C and above 40°C

Optional remotes

Freedom Basic Remote

Dimensions (H x W x L)

7.9 x 11.5 x 13.2” (201 x 292 x 335 mm)

Weight

45 lb (20 kg)

50 lb (23 kg)

Warranty

30 months

Single input, single output

81-2010-12

Single input, dual output 20/15 circuit breakers

81-2022-12

Dual input, dual output

81-2530-12

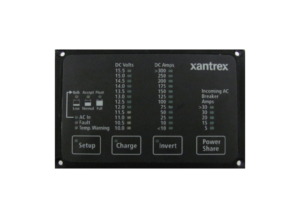

Freedom basic Remote

84-2056-01

Thermal Sensor Assembly 15′

76-0022-00

Regulatory

FREEDOM 458

UL, cUL, CSA

UL and cUL listed to UL 458 and CSA C22.2 No. 107.1 / 107.2 standards

Models

Part number

Input voltage

AC output

Freedom 458-20

81-2010-12

12V

Hardwire (Single in/ single out)

Freedom 458-20

81-2022-12

12V

Hardwire (Single in/ dual out)

Freedom 458-25

81-2530-12

12V

Hardwire (Dual in/ dual out)

Accessories

Part number

Freedom Basic Remote

84-2056-01

12V Ignition Lockout Switch

82-0122-12
