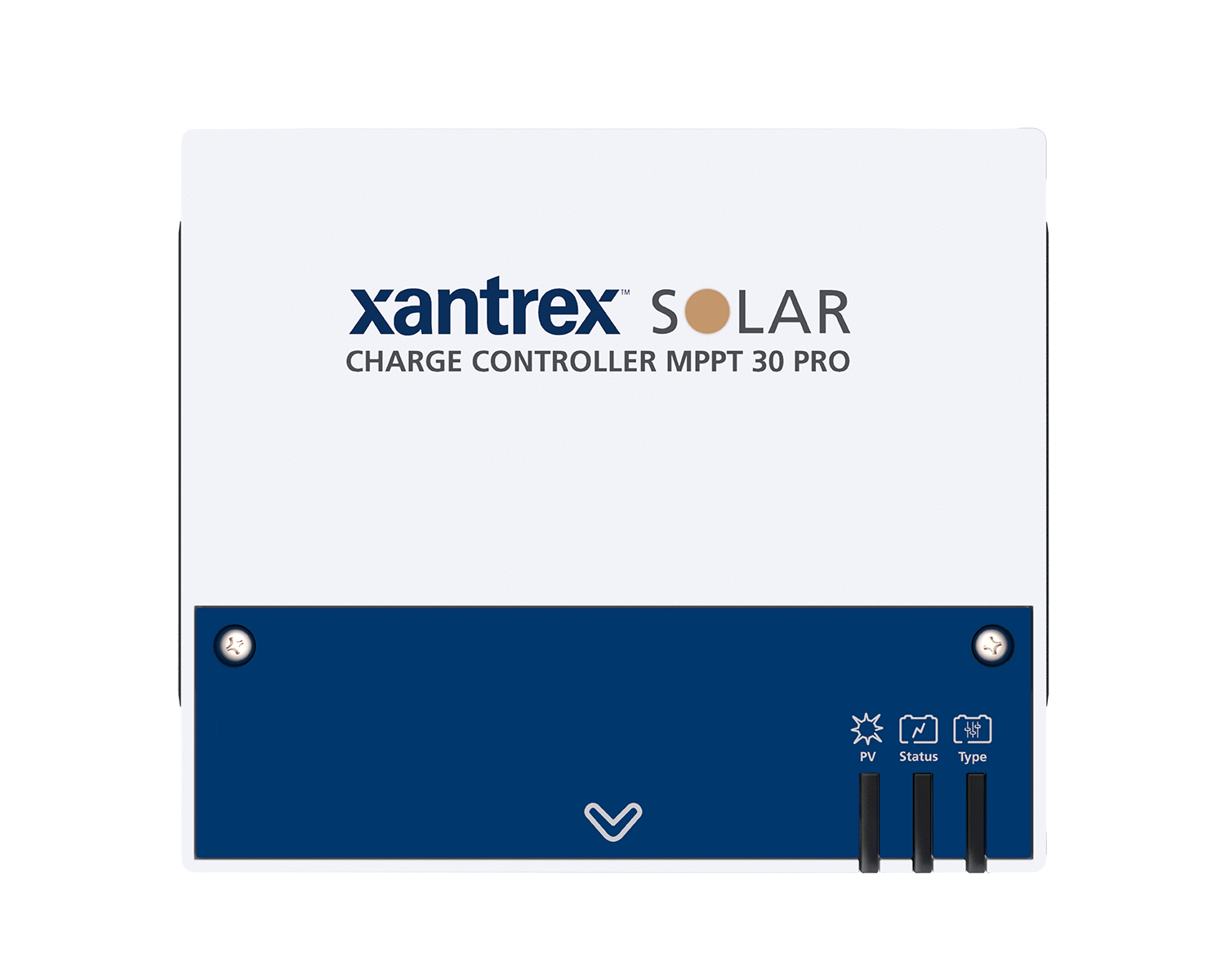

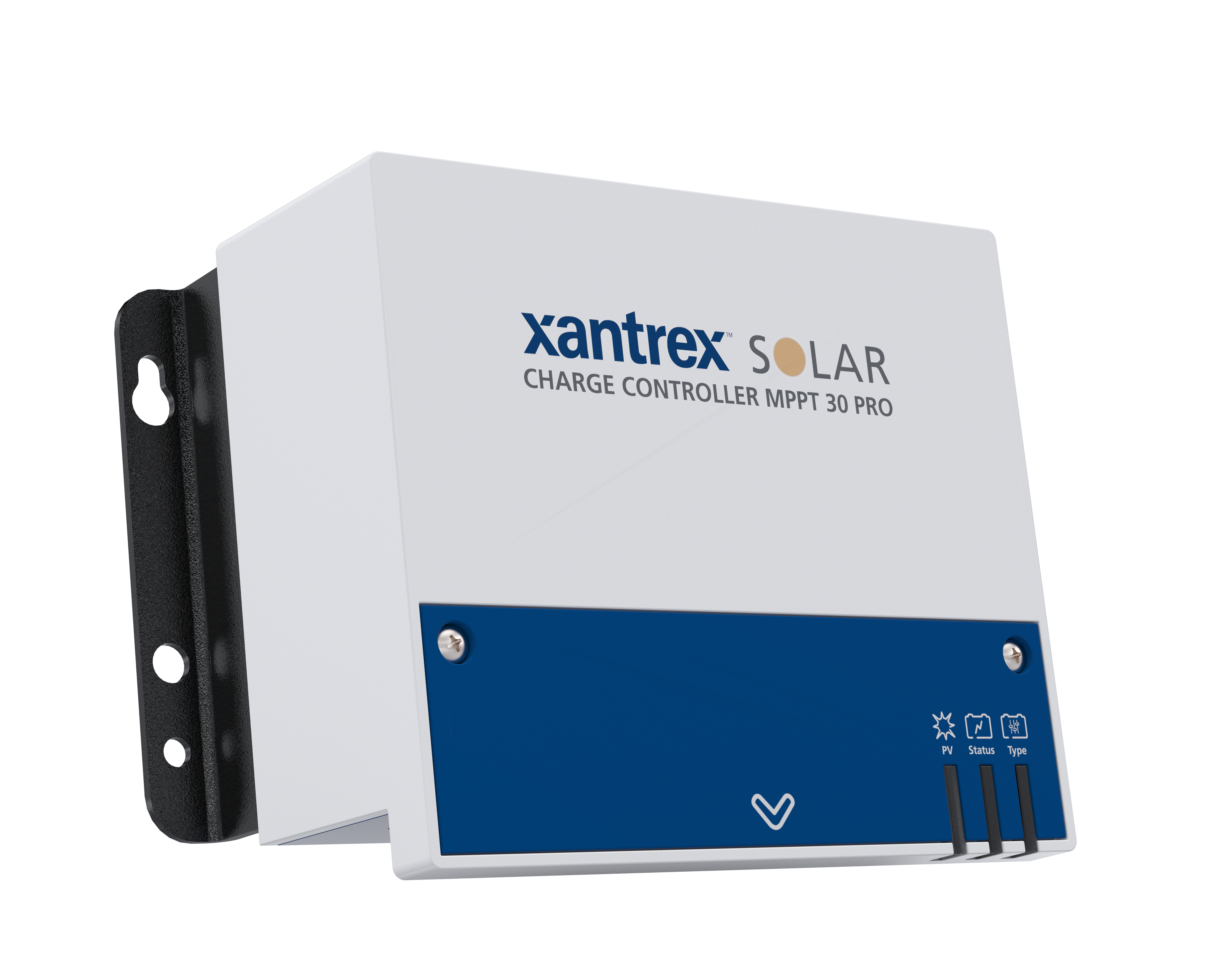

Solar Charge Controller MPPT 30 PRO

Connected Solar, Built into Your Power System

The Xantrex MPPT 30 PRO combines advanced MPPT charging, intelligent battery management, and flexible system connectivity to maximize solar energy and simplify system integration. RV-C, Modbus, and Bluetooth provide flexible connectivity, with Firefly integration through RV-C for connected RV systems and real-time monitoring through the Xantrex App.

Designed for 12V and 24V systems with up to 100V PV input and 30A charging, the MPPT 30 PRO delivers connected solar performance in a compact, fanless design. It provides the performance, reliability, and confidence expected for demanding mobile power applications.

UL and CSA certified | 5-year warranty | Fan-less design

Applications:

  • Recreational Vehicles
  • Heavy Duty Trucks
  • Marine
  • Work Trucks
  • Specialty Vehicles

Available in:

  • SOLAR CHARGE CONTROLLER
    MPPT 30 PRO
    710-3044-01

Advanced MPPT technology with up to 99% conversion efficiency

Designed with industry-leading Maximum Power Point Tracking (MPPT) technology and conversion efficiency

Works with a wide range of battery profiles with the smart 3-stage charging algorithm

Lead-acid, AGM, gel, flooded, lithium and custom batteries

Plug-and-play integration with Firefly

Powered by integrated RV-C

Monitor and Configure Charging wirelessly

Via the Xantrex App with built-in Bluetooth (no additional dongle required)

Dimensions

Solar Charge Controller MPPT 30 PRO

Electrical Specifications

Solar Charge Controller MPPT 30 PRO
Part Number
710-3044-01
Nominal System Voltage
12/24V Auto-Detect
Rated Charge Current
30A
Battery Voltage Range
8 to 32V
Max. PV Open Circuit Voltage
100V
MPP Voltage Range
(Battery voltage + 2V) up to 72V
Max. PV Input Power
12V: 400W 24V: 800W
MPPT Tracking Efficiency
>99%
Charging Conversion Efficiency
97%
Battery Types Supported*
Lead-acid battery (Sealed(AGM) / Gel / Flooded) and Lithium-Iron Phosphate (LiFePO4)
Self-consumption
12V: 17mA 24V: 10mA
Absorption Charging Voltage
By default: 14.4 V | Configurable: 9~17 V
Float Charging Voltage
By default: 13.8 V | Configurable: 9~17 V
Zero Load Loss
<40 mA
Communication
Bluetooth, CAN Network (RV-C)
Protection
Input power limiting, reverse polarity protection (PV and battery), PV overvoltage protection, short-circuit protection, night reverse current protection, lightning surge protection (TVS), and over-temperature protection

Environmental

Solar Charge Controller MPPT 30 PRO
Temperature Compensation Coefficient
-3mV/°C/2V (default)
Operating Temperature Range
-31–113ºF (-35–60°C), fully-rated output
Storage Temperature Range
-40–176ºF (-40–80°C)
Altitude
≤2000 meters
IP Rating
IP21
Relative Humidity
10 – 95 %RH, non-condensing

Mechanical

Solar Charge Controller MPPT 30 PRO
Dimensions (H x W x D)
5.91 x 4.45 x 2.83 in (150 x 113 x 72 mm)
Net Weight
2.09 lbs / 950 g

Regulatory

Solar Charge Controller MPPT 30 PRO
Compliance
UL1741, CSA C22.2#107.1
