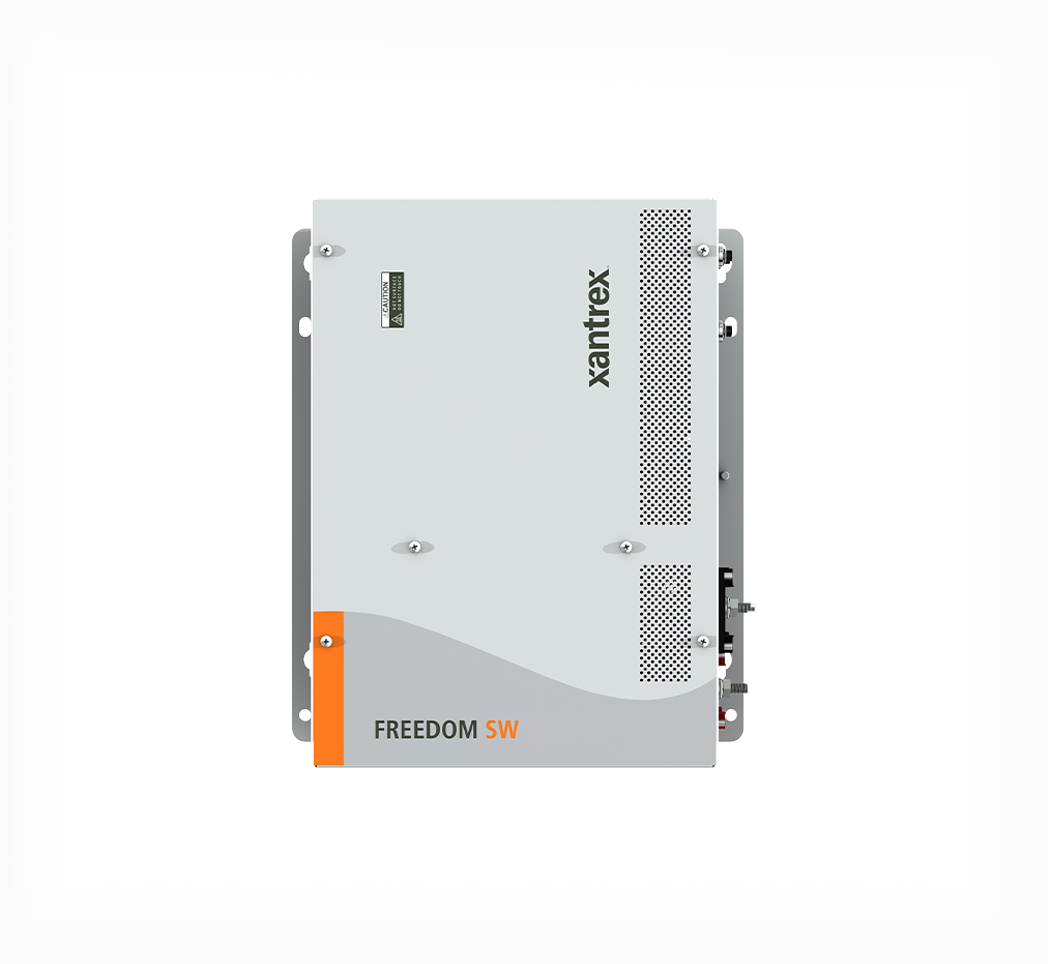

FREEDOM SW 3000W/24V

The Heart of Your Power System

u003cp class=u0022p2u0022u003eu003cspan class=u0022s1u0022u003eu003cspan class=u0022Apple-converted-spaceu0022u003e u003c/spanu003eu003c/spanu003eFreedom SW series from Xantrex are the most advanced and capable inverter chargers in the mobile market. Available in 3000 W with 150 A charger and 2000 W with 100 A charger, these units are packed with features like “Generator Support Mode” which enables the Freedom SW to assist a generator when AC loads exceed the generator’s capacity. They are also stackable for extra power and with the ComBox accessory, data logs and system control can be pushed to your tablet or phone! If you are looking for a unit for your air conditioning, this is the one! With a powerful longu003cspan class=u0022Apple-converted-spaceu0022u003e u003c/spanu003eduration 2x surge and other industry leading features, the Freedom SW series will handle demanding poweru003cspan class=u0022Apple-converted-spaceu0022u003e u003c/spanu003erequirements.u003c/pu003ernu003cp class=u0022p2u0022u003eAlso available is 24V.u003cspan class=u0022Apple-converted-spaceu0022u003e u003c/spanu003eu003c/pu003e

Certifications:

  • H.A.L.T
  • ETL listed to CSA 107.1, UL458 and UL458 Marine Supplement (drip shield with product number 808-9004 required) ABYC E-11, A-31, A-32
  • CFR 47, FCC, PART 15, Subpart B, Class B and CAN ICES-3 (B) / NMB-3 (B)

Applications:

  • Recreation Vehicles
  • Heavy Duty Trucks
  • Marine
  • Work Trucks
  • Speciality/Emergency Vehicles

Available in:

  • FREEDOM SW 12V 2012
    2000W/100A, 12V
    PN: 815-2012
  • FREEDOM SW 12V 3012
    3000W/150A, 12V
    PN: 815-3012
  • FREEDOM SW 24V 2024
    2000W/50A, 24V
    PN: 815-2024
  • FREEDOM SW 24V 3024
    3000W/75A, 24V
    PN: 815-3024

Stackable in parallel or series

Parallel units to double inverter power or connect them in series to get split-phase 120VAC/240VAC.

200% surge for 5s for motor loads

Up to 200% power for 5s to support motor loads such as drills and circular saws which require large power to start up.

Features

  • True sine wave to support sensitive electronics

  • 200% for 5s surge for motor loads

  • Generator support mode

  • Xanbus Enabled

What Can Be Powered

FREEDOM SW All Models

  • Laptop

  • Smartphone

  • Laptop

  • TV

  • DVD Player

  • Fridge

Dimensions

FREEDOM SW 2012 & 3012

Electrical Specifications – Inverter

FREEDOM SW 3024
Output power (continuous at 40°C)
3000W
Surge rating (5 seconds)
6000W
Peak output current
75A
Output frequency
60 Hz +/- 0.2 Hz
Output voltage
120Vac
Output wave form
True sine wave
Optimal efficiency
94%
No-load power draw (inverting)
< 1.5Adc
Input DC voltage range
20 – 32Vdc
AC connections
Single phase in/out

Electrical Specifications – Battery Charger

FREEDOM SW 3024
Output current (continuous at 25°C)
75A
Output voltage
24Vdc
Output voltage range
12 – 32Vdc
Charge control
Three-stage with manual equalize
Charge temperature compensation
Remote battery sensor (included)
Optimal Efficiency
> 85%
AC input power factor (maximum charge)
0.95 typical
Input current (for maximum charging)
24A rms nominal
Input AC voltage
120Vac
Input AC voltage range
85 – 140Vac
Dead battery charge
> 12Vdc

General Specifications

*System Control Panel is required for configuring various battery types. Lithium Iron Phosphate can be selected using custom.
FREEDOM SW 3024
Compatible battery types
Custom / Flooded / Gel / AGM*
Transfer relay rating
2 leg of 30A
Transfer time (AC to inverter and inverter to AC)
< 20 ms
Optimal operating temperature range
-4°F to 104°F (-20°C to 40°C)
Storage ambient temperature range
-40°F to 185°F (-40°C to 85°C)
Part Number
815-3024
Dimensions (L x W x H)
20.5″ x 17.1″ x 11.8” (522mm x 435mm x 300mm)
Net Weight
69.4 lbs (31.5 kg)

Regulatory

FREEDOM SW 3024
Safety
ETL listed to CSA 107.1, UL458 and UL458 Marine Supplement (drip shield with product number 808-9004 required) ABYC E-11, A-31, A-32
EMC
CFR 47, FCC, PART 15, Subpart B, Class B and CAN ICES-3 (B) / NMB-3 (B)

Models

Model
Part number
Input voltage
tAC output
Freedom SW 2012
t815-2012
12V
GFCI and/or Hardwire
Freedom SW 3012
t815-3012
12V
GFCI and/or Hardwire

Accessories

Accessory
Part number
System Control Panel
809-0921
Automatic Generator Startt
809-0915
GFCI Option
808-9003
Remote Panel
808-9002
75′ Network Cable
809-0942
25′ Network Cable
809-0940
Cable for Series Stacking
808-9005
Sequence Power Manager
809-0913
Freedom SW telephone to network cable adapter
808-9010
Freedom SW remote panel mounting bracket
XAN-BRFSW
